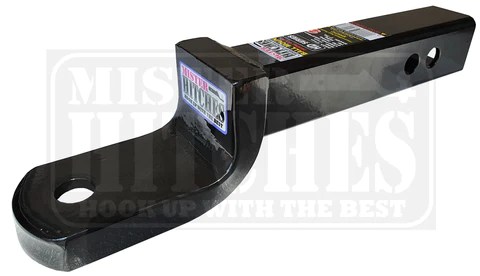

Mister Hitch – MH002HD – 3650kg Ball Mount Heavy Duty 57mm Drop, 31mm Rise, 254mm Length




Whether it be an adjustable hitch or different sized dropped down hitches (which are legally able to be inverted) we have the right hitch for you!

Often we see clients who need to alter their towing setup as the caravan/trailer/boat is not level or is either “nose up” or “nose down”.  This can have serious ramifications on Towball download and axle weights.

We not only provide replacement hitches, but we will swap out your hitch and towball and install your new hitch at your weighing consultation for free.

Reversible – raises or lowers ball to the right level for towing
Black powder coated finish
Robotic welded for consistent quality
Cnc machined for maximum accuracy
2 holes for greater adjustment
Fits 2″ x 2″ towbar receivers
Extra heavy duty 25mm thick x 75mm wide ball platform
Gross trailer weight: 3650kg

Tongue weight: 365kg

Ball hole size: 7/8″

Drop: 57mm

Rise: 31mm

Lengths: approx. 255mm & 280mm (measured from centre of pin holes to centre of ball hole)

End of shank to first pin hole is 50mm (suits short shank receivers eg. Ford ranger)
