Red 8mm G80 Hammerlock Safety Chain Connector 2.0t WLL

$20.00

40 in stock

Category

Is your trailer or caravan chain too short?

The solution

  • Cut the trailer chain from your chassis rail, leaving one welded link on the chassis.
  • Install a new piece of rated galvanised 10mm longer chain. This chain is 64cm long.
  • Connect the Hammerlock to the new chain and the welded link on the chassis rail.

What you cannot do

  • Join the safety chain with dee or bow shackles until you reach the desired length.
  • Insert un-rated safety chain links.

Galvanised chains and shackles are illegal on all trailers OVER 3.5t.

Description

Red 8mm G80 Hammerlock Safety Chain Connector | 2.0t WLL

G80 Hammerlock connects galvanised 8mm safety chains to a trailer or dee shackle on the towbar.

Also, using hammerlocks shackles to join your trailer chain or to lengthen your chain is permitted.

A hammerlock connects the safety chain to the chain holder on the caravan chassis rail.

Hammerlock Features

  • WLL (Working Load Limit) 2 Tonne
  • Breaking Load or Strain 8 Tonne (4 x WLL)
  • The Hammerlock connects a grade 80 chain to an oblong link, hook, or other components.
  • Red powder-coated finish.
  • Each connecting link and each Hammerlock or body half shall not have, in use, more than one load-bearing component or chain.
  • Always allow for sufficient articulation and avoid over-crowding to ensure the load will be transmitted axially.
  • Ideal for a wide range and moving applications.
  • Connects chain to trailers or connects dee shackles to tow bars.
  • Australian standard: AS 3776 – Grade 80 Lifting Chain & Fittings.
  • Suitable for Caravans with ATM of 3.5t (ie Minimum Breaking Strain of 1.5 x 3.5t ATM, ie 5.25t)

Shackle Dimensions

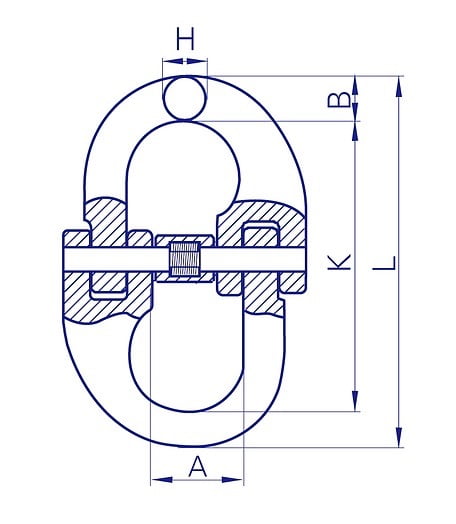

Please refer to the technical drawing.

  • A – 18mm
  • B – 9.5mm
  • L – 79.5mm
  • K – 60.5mm
  • H – 8.5mm
